ASR 1" Hollow Swaybar Upgrade Kit

ASR 1″ Hollow Swaybar Upgrade Kit

ASR 1" Hollow Swaybar Upgrade Kit

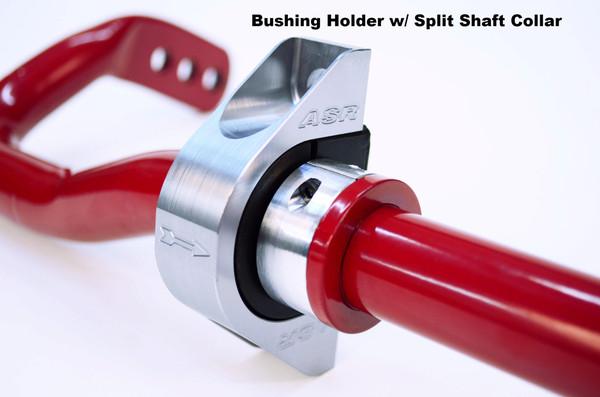

Improve your vehicles handling dynamics with the ASR swaybar kit. This is the perfect upgrade to bolt on to your existing ASR subframe brace. The machined billet aluminium brackets with polyurethane bushings ensures proper mounting and fitment to your ASR brace. This product was designed for longevity and performance under street and track driving conditions.*

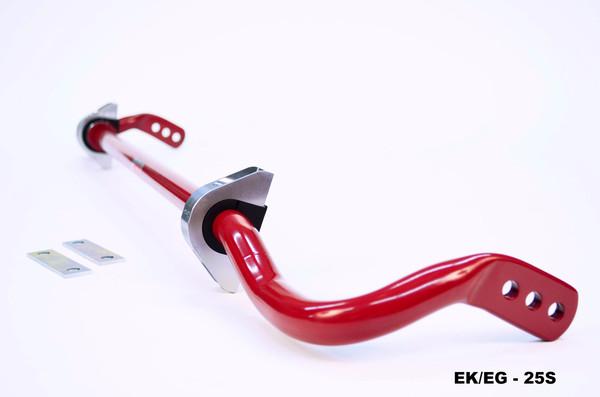

ASR 1" Hollow Swaybar (Street/Track)

The ASR 1" hollow bar is the first of its kind. Featuring a hollowed out core this bar is significantly lighter than our 24mm swaybar. The 1" swaybar also keeps the same dimensions as a OEM swaybar but is even stiffer than our 24mm swaybar due to the increased diameter.

Swaybar Rate Comparison
OEM ITR 22 mm Bar
 Measured bar rate:
P1 = 51 N/mm (292 lbs/in)
Bar weight: 3.78 kg (8.4 lbs)

OEM ITR 23mm Bar
Measured  bar rate:
P1 = 60 N/mm (347 lbs/in)

ASR Grey bar: 23.8mm (.937 in) Solid, 2 Position adjustable
Measured bar rate:
P1 = (414lbs/in)
P2 = (507lbs/in)
Grey bar weight: 4.4 kg (9.7 lbs)

ASR Red bar: 25.4 mm (1 in) Hollow, 3 position adjustable
Measured bar rate:
P1 = 73 N/mm (418 lbs/in)
P2 = 94 N/mm (533 lbs/in)
P3 = 111 N/mm (630 lbs/in)
Red bar weight: 3.15 kg (7.0 lbs)

*ASR adjustable end links available separately
