BLOX Racing V3 Intake Manifold & Throttle Body Combo – B Series
BLOX Racing V3 Intake Manifold & Throttle Body Combo - B Series
Save money and buy intake manifold and throttle body together!

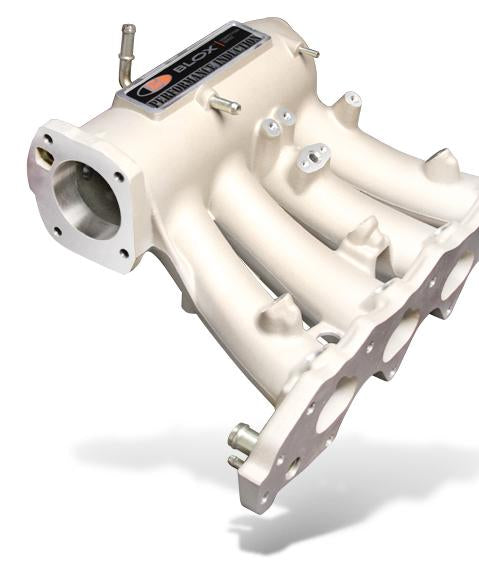

BLOX Racing Performance Intake Manifolds are cast using the latest in gravity casting technology, which helps create a smoother internal plenum and runners. The intake manifold’s overall weight is also greatly reduced. In addition, the IACV port has been relocated in order to accommodate throttle body match-porting up to 72mm.
To add a distinct look, the intake manifold now features a raised nameplate and included BLOX Racing product badge.
The BLOX Racing Power Intake Manifold features a larger plenum and longer runners which significantly increases the engine’s incoming airflow and volume compared to the factory and some other aftermarket units. Each intake manifold has been balanced, pressure tested and tuned to create more usable horsepower across a wider RPM range.
Recently introduced, the BLOX Racing Version 3 intake manifold features pre-drilled holes on the nameplate that accommodates the new BLOX Racing surface-mount vacuum block. The surface-mount vacuum block easily bolts on top of the nameplate providing a clean and hassle-free installation. However, the name badge can be applied if a vacuum block is not used.
The surface-mount vacuum block provides additional sources of vacuum and can be mounted on to any flat surface. Vacuum blocks are sold separately.
All BLOX Racing Performance Intake Manifolds are designed to accept factory or aftermarket throttle bodies, and reuse all factory sensors.

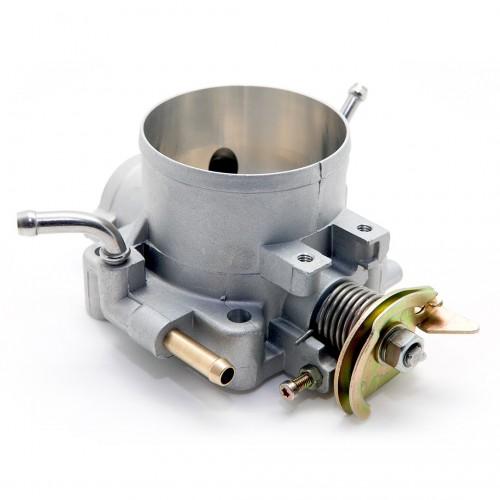

Blox Tuner Series Throttle Body – B/D/H/F Series
BLOX Racing is pleased to offer its updated line of cast, aluminium throttle bodies. It’s original, and best selling 68mm throttle body has been updated to include idle adjustment. This die-cast unit is joined by 66mm and 70mm larger bore throttle bodies.
BLOX Racing Tuner Series throttle bodies are alternatives to its line of billet throttle bodies. These units are cast in aluminium and are direct-fit for the Honda B/D/H and F-series engines.
The Tuner Series throttle body looks and feels like an OEM unit but definitely outperforms it. The larger bore sizes helps to optimize incoming airflow and increases horsepower and torque. BLOX Racing Tuner Series throttle bodies each include a matching gasket.
Note: This package comes with 66mm throttle body - the blox v3 manifold opening does not accept a large tb without machining.
