Hybrid Racing Fuel Pressure Regulator
The fuel pressure regulator is an often overlooked, but very critical component in a vehicle’s fuel system. Without a reliable and consistent fuel pressure, your ECU has no way of knowing how much fuel it is injecting into each cylinder.

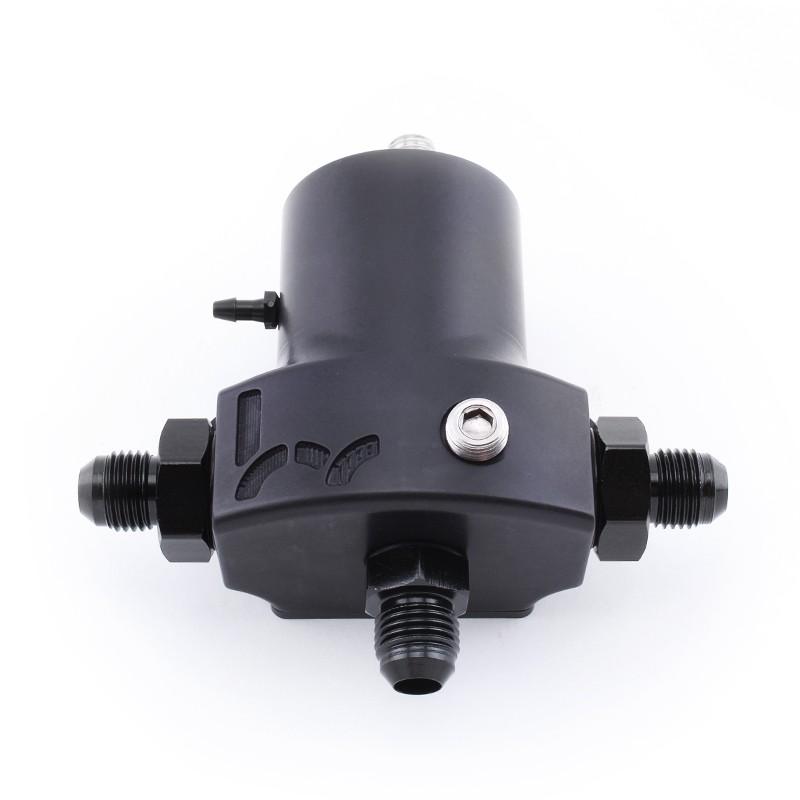

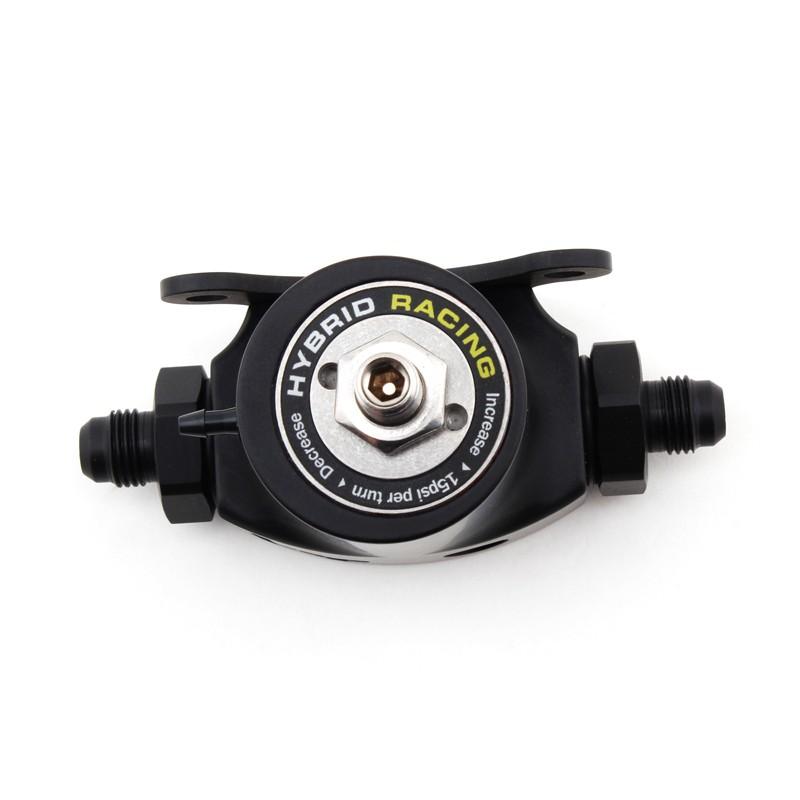

The Hybrid Racing fuel pressure regulator features a piston-type design that introduces damping into the regulator to reduce pressure fluctuations and needle bounce, giving you a more stable and reliable fuel pressure.
Constructed from aircraft-grade 6061-T6 aluminum and 304 stainless steel, each regulator receives durable Teflon impregnated, hard anodized finish and redundant seal quad o-rings for improved performance and longevity.
The end-product is a regulator that keeps your fuel pressure consistent, and looks good doing it. Each regulator comes supplied with all of the fittings you’ll need to hook up either a return or return less fuel system with -6 AN lines. The regulator can accept up to -8AN lines, but you will need to purchase (2) -8AN/-8ORB unions to attach the -8AN lines.
Features:
- Piston-type design provides pressure damping
- Teflon coated, hard anodized, 6061 aluminum construction
- Stainless steel cap and hardware
- -8 Inlet/Outlet Ports
- -6 Return Port
- 1/8 NPT gauge port

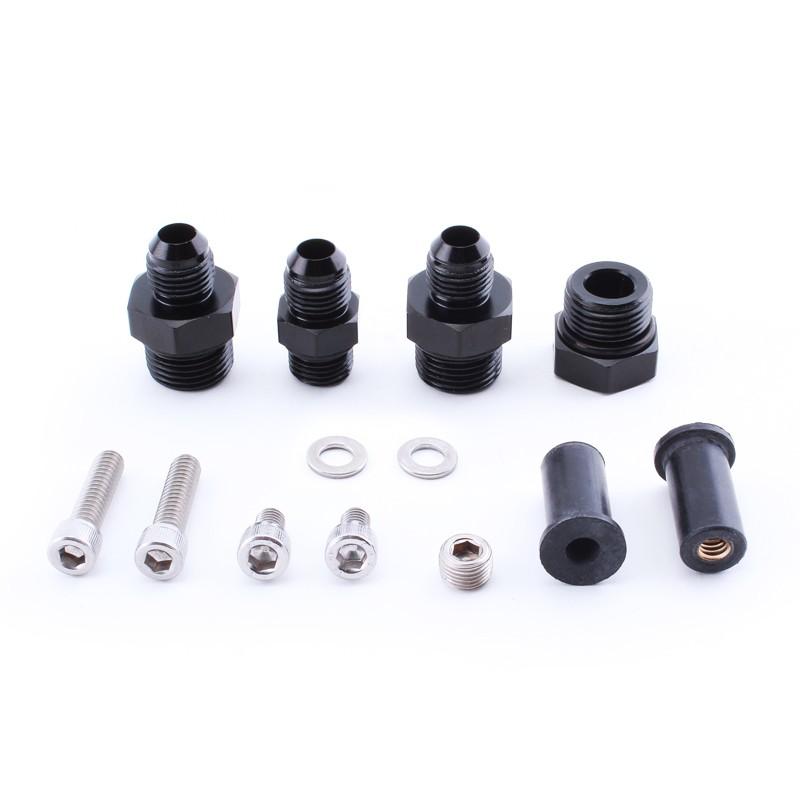

- Includes all fittings needed to attach to -6AN fuel lines
- Includes mounting hardware
- Adjustable from 30PSI - 100PSI
