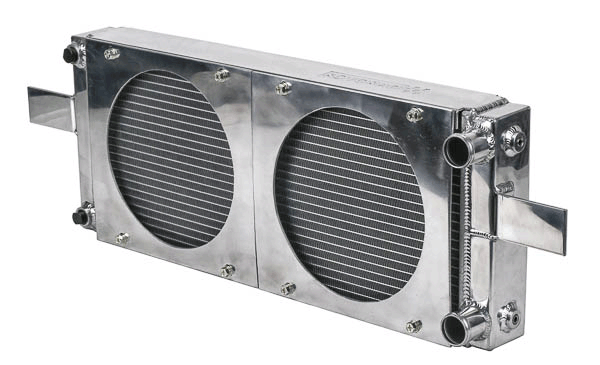

Koyo Honda Universal Tucked Radiator
Finally an affordable tucked radiator option. Koyorad have delivered with a high quality tucked radiator and shroud kit.
It can be flipped 180 deg for K swap duty.
Features:
- High Density 53mm thick Hyper Core
- Versatile mounting tabs
- Design can be easily reversed or flipped
- (L)24” x (H)9.5” Total length including mounting tabs: 30.5”
- Two air purge ports
- Two 1/8 PT temperature sensor ports
- Two Row Core
- Dual pass “NFLO” partition
- Removable fan shrouds
- Compatible with 8 inch electric fans (see link below for Koyorad verified options)
- High polished
- 32mm (1.25") Inlet and Outlet
- Triple Pressure tested
Compatible Fan Options - http://koyoradracing.com/news.asp?id=170
